SGLang PD Disaggregation Performance

SGLang PD Disaggregation Performance#

Mooncake provides a KV transfer backend for SGLang, enabling Prefill-Decode (PD) disaggregation through the Mooncake Transfer Engine. We evaluated this integration, focusing on the efficiency of cross-node KV cache transfer over RoCE.

Benchmark Result#

Bandwidth Performance#

We measured the transfer bandwidth during the execution of requests with varying prompt lengths.

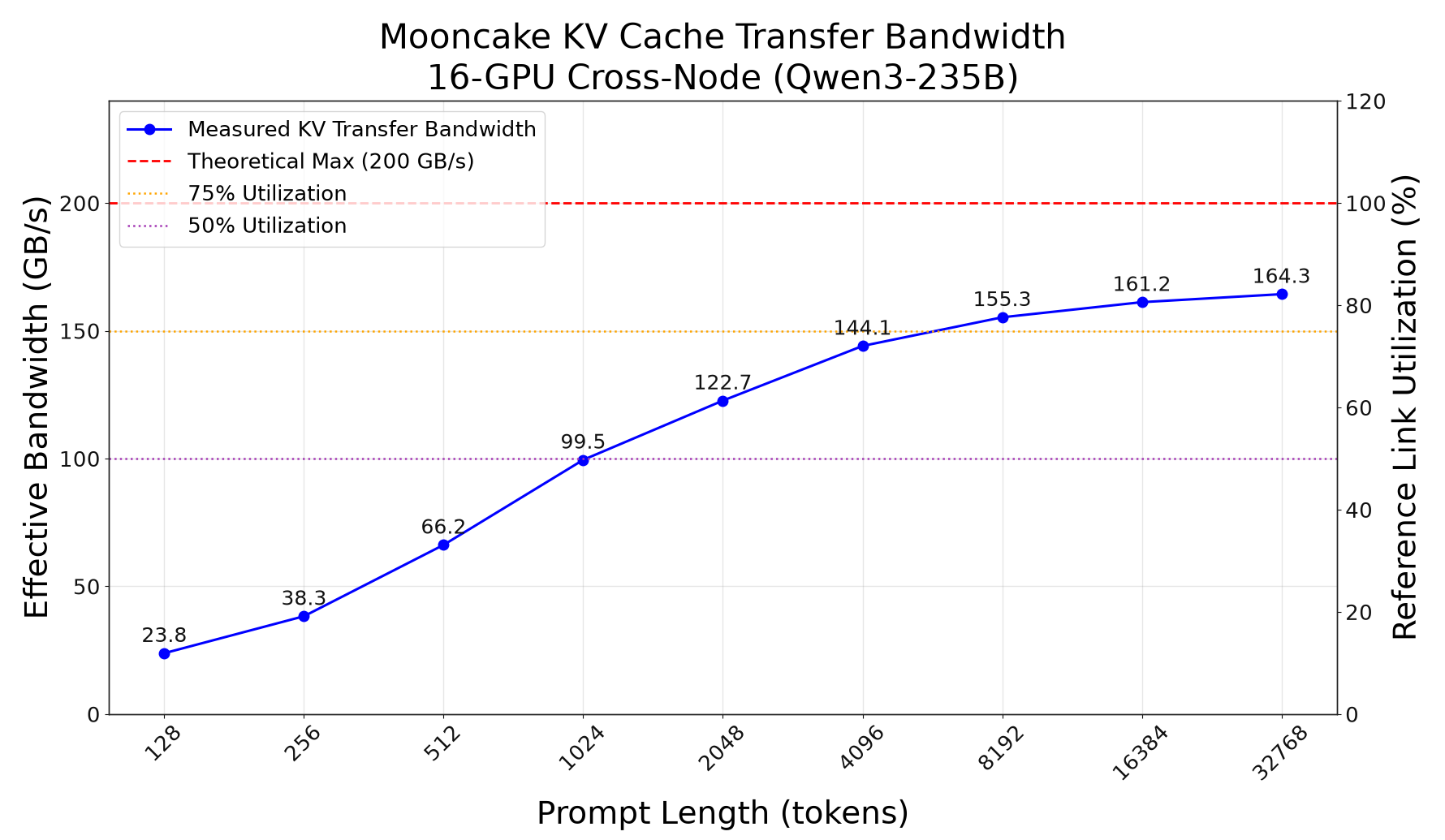

Mooncake KV Cache Transfer Bandwidth

In a 1P1D (1 Prefiller, 1 Decoder) configuration using the Qwen3-235B-A22B-Instruct-2507 model, Mooncake achieved a peak transfer bandwidth of 164.3 GB/s. Compared with the 200 GB/s aggregate line rate of four 400GbE links per node, this represents 82.2% bandwidth utilization. This result demonstrates that the Mooncake Transfer Engine and GPUDirect RDMA can sustain high aggregate throughput over the cross-node RoCE fabric.

Time to First Token (TTFT)#

We analyzed the Time To First Token (TTFT) to understand the impact of KV transfer overhead on end-to-end latency. The curve peaks at 2,048 tokens. Beyond this point, prefill computation grows faster than KV transfer time, so transfer accounts for a smaller share of TTFT.

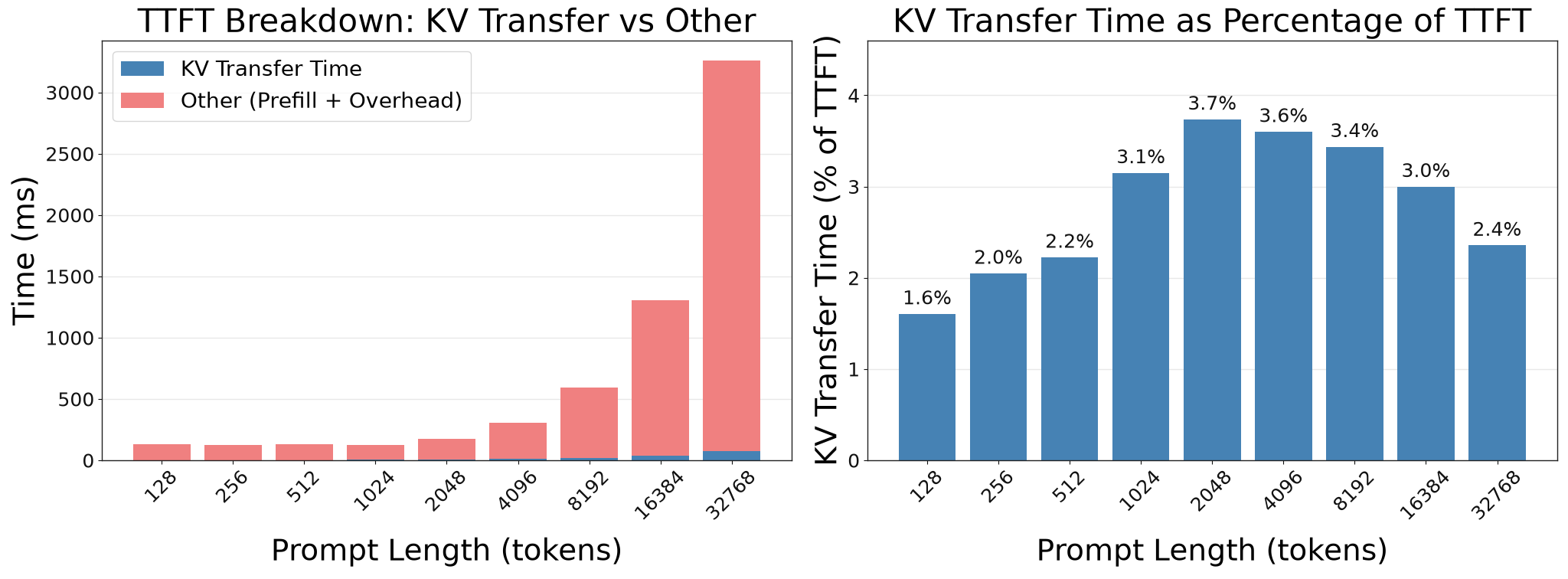

TTFT Breakdown

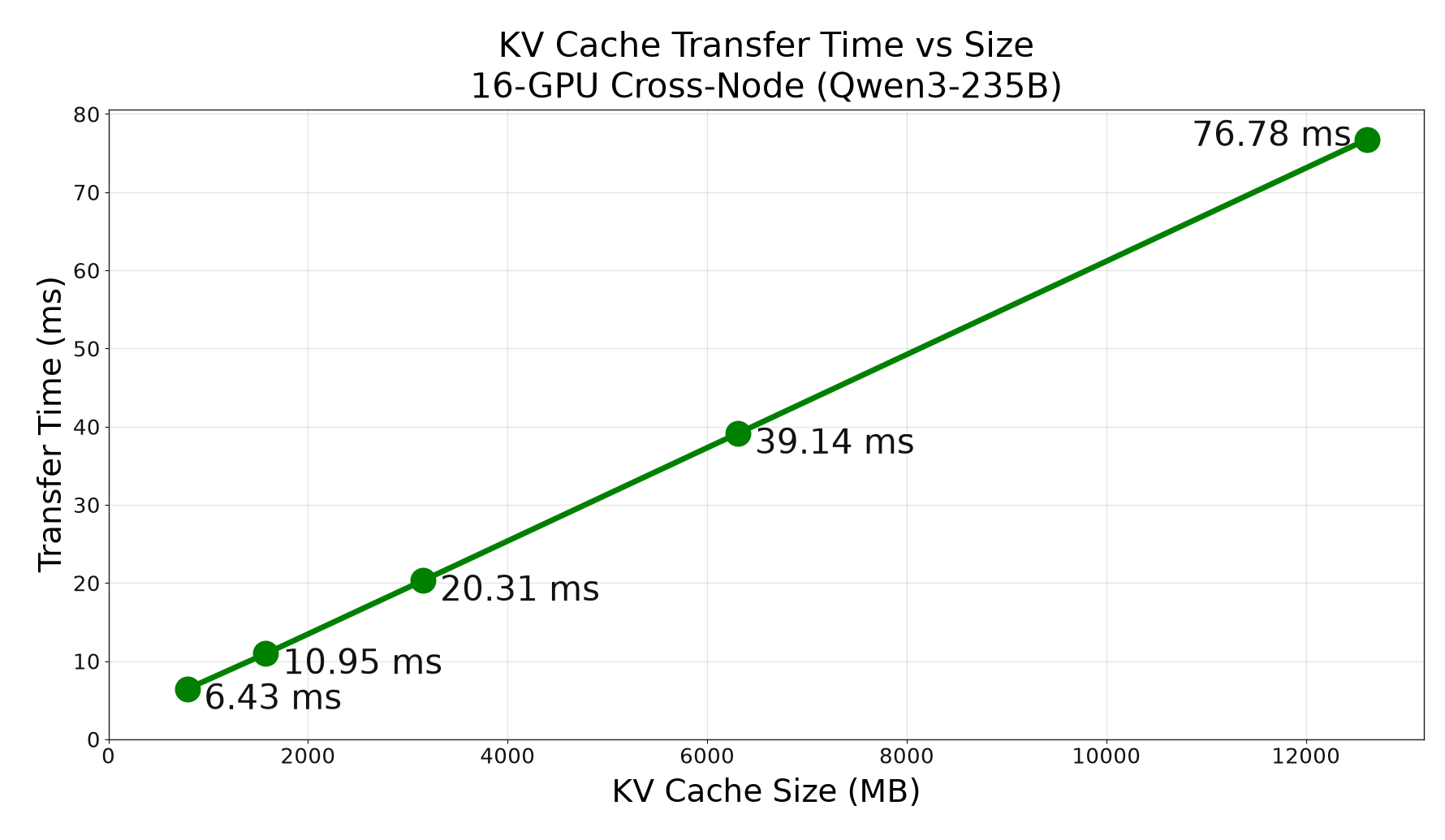

KV Cache Transfer Time vs. Size

The results show that Mooncake’s high-speed transfer keeps the overhead of moving the KV cache small relative to computation time. For a prompt length of 32,768 tokens (transferring 12.62 GB of KV data), the KV transfer took 76.78 ms, accounting for 2.4% of the total TTFT.

Detailed Performance Data:

Prompt Length

TTFT (ms)

KV Size

Transfer Time (ms)

Bandwidth (GB/s)

Bandwidth Utilization

128 tokens

129.21

49 MB

2.07

23.79

11.9%

256 tokens

125.76

99 MB

2.58

38.27

19.1%

512 tokens

133.91

197 MB

2.98

66.18

33.1%

1,024 tokens

125.84

394 MB

3.96

99.47

49.7%

2,048 tokens

172.05

789 MB

6.43

122.66

61.3%

4,096 tokens

304.02

1.58 GB

10.95

144.05

72.0%

8,192 tokens

591.14

3.15 GB

20.31

155.26

77.6%

16,384 tokens

1,305.15

6.31 GB

39.14

161.19

80.6%

32,768 tokens

3,260.14

12.62 GB

76.78

164.33

82.2%

Benchmark Setup#

H20 Cluster#

  • Hardware Configuration: NVIDIA H20-3e (143 GB) x 16 (8 per node), 8x NVIDIA/Mellanox ConnectX-7 400GbE ports (4 per node).

  • Topology: 1P1D. The Prefiller and Decoder are connected through RoCE v2. The SGLang Router runs on the Decoder node.

  • Model: Qwen3-235B-A22B-Instruct-2507 (BF16).

  • SGLang version: main at commit 43124cdd, pulled on July 15, 2026.

  • Mooncake version: main at commit 6e3a11b9, pulled on July 15, 2026.

  • KV Transfer Backend: Mooncake Transfer Engine.

  • Transfer Method: Cross-node RDMA over RoCE v2.

  • Cache Configuration: HiCache and radix cache disabled; chunked prefill disabled.

Launch Commands#

Prefiller:

SGLANG_HOST_IP=<PREFILL_HOST_IP> \
MOONCAKE_PROTOCOL=rdma \
WITH_NVIDIA_PEERMEM=1 \
python -m sglang.launch_server \
  --model-path /path/to/Qwen3-235B-A22B-Instruct-2507 \
  --host 0.0.0.0 --port 30000 \
  --tp-size 8 \
  --dtype bfloat16 \
  --trust-remote-code \
  --stream-interval 1 \
  --chunked-prefill-size -1 \
  --disable-radix-cache \
  --disaggregation-mode prefill \
  --disaggregation-bootstrap-port 8998 \
  --disaggregation-transfer-backend mooncake \
  --disaggregation-ib-device /path/to/ib_devices.json \
  --enable-request-time-stats-logging

Decoder:

SGLANG_HOST_IP=<DECODE_HOST_IP> \
MOONCAKE_PROTOCOL=rdma \
WITH_NVIDIA_PEERMEM=1 \
python -m sglang.launch_server \
  --model-path /path/to/Qwen3-235B-A22B-Instruct-2507 \
  --host 0.0.0.0 --port 30001 \
  --tp-size 8 \
  --dtype bfloat16 \
  --trust-remote-code \
  --stream-interval 1 \
  --chunked-prefill-size -1 \
  --disable-radix-cache \
  --disaggregation-mode decode \
  --disaggregation-transfer-backend mooncake \
  --disaggregation-ib-device /path/to/ib_devices.json \
  --enable-request-time-stats-logging

Router (Decoder Node):

python -m sglang_router.launch_router \
  --host 0.0.0.0 --port 8000 \
  --pd-disaggregation \
  --prefill http://<PREFILL_HOST_IP>:30000 8998 \
  --decode http://<DECODE_HOST_IP>:30001 \
  --policy round_robin

Benchmark Script#

We used the official sglang.benchmark.serving module to generate traffic with varying prompt lengths. Each prompt length contains 50 requests with an output length of 128 tokens.

for prompt_len in 128 256 512 1024 2048 4096 8192 16384 32768; do
  python -m sglang.benchmark.serving \
    --backend sglang \
    --base-url http://127.0.0.1:8000 \
    --model /path/to/Qwen3-235B-A22B-Instruct-2507 \
    --served-model-name Qwen3-235B-A22B-Instruct-2507 \
    --tokenizer /path/to/Qwen3-235B-A22B-Instruct-2507 \
    --dataset-name random \
    --dataset-path /path/to/ShareGPT_V3_unfiltered_cleaned_split.json \
    --num-prompts 50 \
    --random-input-len "${prompt_len}" \
    --random-output-len 128 \
    --random-range-ratio 1.0 \
    --request-rate inf \
    --max-concurrency 1 \
    --seed 42 \
    --flush-cache \
    --warmup-requests 1 \
    --tokenize-prompt \
    --output-details \
    --output-file "result-${prompt_len}.jsonl"
done

PD Disaggregation vs. Regular SGLang#

We evaluated the earlier implementation on two A10 servers. By comparing the performance of a 1P1D configuration with that of two regular (non-disaggregated) instances, we observed that P/D disaggregation achieves approximately 30% lower ITL while maintaining comparable total throughput. This aligns with findings from the Mooncake paper, which highlighted that P/D disaggregation is effective in reducing TBT/ITL under similar throughput conditions—or conversely, in enabling higher throughput under stricter ITL/TBT SLOs.

Moreover, we anticipate even greater benefits in larger-scale clusters where both the number of prefill and decode nodes (x and y in xPyD configurations) increase, offering enhanced scheduling flexibility and resource efficiency.

Traffic Request Rate: 1.0#

  • model: Qwen2.5-7B-Instruct-GPTQ-Int4

  • TP: 4

  • random_input_len=8192, random_output_len=512

  • num prompt=50

Configuration

Output Token Throughput (tok/s)

Mean E2E Latency (ms)

Total Token Throughput (tok/s)

Mean TTFT (ms)

P99 TTFT (ms)

Mean ITL (ms)

P99 ITL (ms)

1P1D

407.59

3413.86

7084.46

732.54

2952.57

7.23

10.76

2 Regular

427.65

4586.54

7433.27

767.18

1264.88

10.30

12.73

Traffic Request Rate: 4.0#

  • model: Qwen2.5-7B-Instruct-GPTQ-Int4

  • TP: 2

  • random_input_len=2048, random_output_len=512

  • num prompt=200

Configuration

Output Token Throughput (tok/s)

Mean E2E Latency (ms)

Total Token Throughput (tok/s)

Mean TTFT (ms)

P99 TTFT (ms)

Mean ITL (ms)

P99 ITL (ms)

1P1D

1215.17

11519.24

6161.43

1111.94

2725.89

17.06

19.72

2 Regular

1223.03

11683.15

6201.29

310.01

720.91

25.74

294.89

By the Mooncake Team
